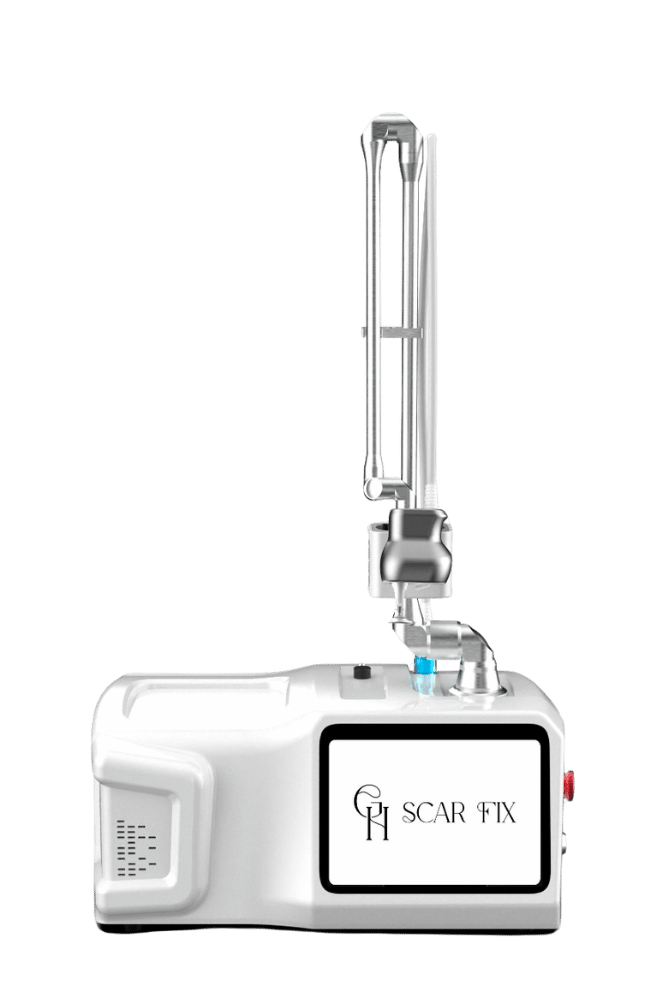

Frax CO₂ Laser
70W Coherent RF tube resurfacing
70W Coherent (USA) RF tube driver with Korealab (Korea) 7-joint arm and Cambridge (USA) nano-sensor scanner displaying 3000+ scan modes. Includes surgical and gynecology handpieces.
Overview
A refined instrument, engineered for daily practice.
All got my own private settings that is not available for the market, they got extra feature as well for the cellulit treatment.
A fractional CO₂ resurfacing platform assembled from best-in-class components: a 70W Coherent RF tube driver, a Korealab 7-joint arm and a Cambridge nano-sensor scanner motor offering more than 3000 scan modes. Surgical and gynecology handpieces extend the system well beyond standard resurfacing protocols.
The training course for the machine is included and it is for one day.
Treatments
- Wrinkle removal
- Skin resurfacing
- Acne scar removal
- Stretch mark removal
- Scar removal
- Large pore removal
- Cellulite treatment
Key components
- 70W high-power RF tube laser driver from Coherent Inc., USA — stable output, 30,000-hour warranty
- 7-joint laser arm from Korealab Inc., South Korea — stable output and uniform light energy
- Nano-sensor scanner motor from Cambridge Co., USA — 3000+ scan modes, accurate and fast
- Surgical handpieces with 50mm and 100mm spot sizes for different treatment areas
- Gynecology handpieces with 180° conical reflector and 45° inclined reflector
Specifications
- Laser Type
- 10600nm CO₂ laser
- Maximum Output Power
- 70 W
- Focus Spot Diameter
- ≤ 0.1 mm
- Pulse Width
- 0.1–10 ms (0.1 ms step)
- Repeat Time
- 1–20 (1 step)
- Scan Shapes
- Square, Rectangle, Circle, Triangle, Hexagon, Ellipse, Line
- Maximum Scan Area
- 20 × 20 mm
- Scan Patterns
- Standard, Random, Scatter
- Screen
- 12.1" LCD touch screen
- Voltage
- AC 220V 50Hz / AC 110V 60Hz
Gallery
